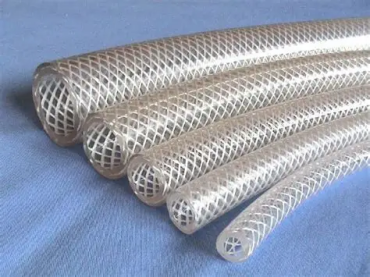

Pvc High-Intensity Polyester Fiber Reinforced Hose

Product Features

This product features a high-quality PVC and high-strength polyester fiber reinforced structure. It is transparent, non-toxic, odorless, and resistant to pressure, tension, corrosion, and aging. Colorful marking lines can be added to the hose body as needed, offering an attractive appearance and easy identification.

Uses

Widely applicable in industries such as industry, agriculture, fisheries, construction, sanitation, landscaping, and household use, especially suitable for daily water supply needs such as general equipment water supply, garden watering, and farmland irrigation

Operating Temperature：-10°C to 65°C

Online inquiry

Previous Next

Detailed content

Imperial dimensions	Metric dimensions			Weight	Common pressure W.P MPa	Breaking through pressureB.P MPa	Package dimensions cm			Volume
Inch	Inner diameter I .Dmm	Outer diameter O.Dmm	Length M/ROLL	Kg/ROLL	At23℃		Packaging ID	Packaging OD	Height cm	m³
1/4”	6	10	150	10	1.0	3.0	15	41	12	0.020
		11	110	10			15	40	12	0.019
		12	88	10			15	38	11	0.016
5/16”	8	12	118	10	1.0	3.0	15	43	14	0.026
		13	90	10			15	44	13	0.025
		14	72	10			15	42	13	0.023
3/8”	9	13	108	10	0.9	2.7	15	44	13	0.025
3/8”	9	14	83	10	0.9	2.7	15	43	12	0.022
13/32"	10	14	100	10	0.8	2.4	15	44	14	0.027
	10	15	75	10			15	43	13	0.024
	10	16	80	10			15	42	13	0.023
	12	16	170	20	0.7	2.1	25	62	20	0.077
	12	17	130	20	0.7	2.1	25	60	20	0.072
1/2”	12	18	105	20	0.9	2.7	25	55	18	0.054
	13	17	160	20	0.6	1.8	25	62	20	0.077
	13	18	124	20	0.6	1.8	25	60	20	0.072
	13	19	100	20	0.8	2.4	25	59	18	0.063
35/64”	14	19	115	20	0.7	2.1	25	56	21	0.066
35/64”	14	20	93	20	0.7	2.1	25	57	18	0.058
5/8”	15	20	108	20	0.7	2.1	25	63	19	0.075
	16	20	131	20	0.5	1.5	25	63	20	0.079
	16	21	100	20	0.7	2.1	25	64	19	0.078
	16	22	83	20	0.8	2.4	25	59	19	0.063
45/64”	18	24	75	20	0.6	1.8	25	57	19	0.062
3/4”	19	24	88	20	0.6	1.8	25	67	16	0.072
	19	25	70	20	0.7	2.1	25	62	13	0.050
	19	26	60	20	0.8	2.4	25	55	20	0.061
25/32”	20	25	84	20	0.6	1.8	25	61	18	0.067
	20	26	68	20	0.6	1.8	25	57	21	0.068
	20	27	56	20	0.7	2.1	25	56	20	0.063
	20	28	50	20	0.7	2.1	25	56	20	0.063
7/8”	22	27	75	20	0.5	1.5	25	56	20	0.063
7/8”	22	28	63	20	0.6	1.8	25	64	21	0.086
1”"	25	30	69	20	0.4	1.2	25	68	20	0.092
	25	31	56	20	0.5	1.5	25	67	18	0.081
	25	32	47	20	0.5	1.5	25	62	20	0.077
	25	33	40	20	0.6	1.8	25	60	18	0.065
1-1/4"	32	39	57	30	0.4	1.2	40	80	27	0.173
	32	40	49	30	0.5	1.5	44	80	24	0.154
	32	42	37	30			28	66	21	0.091
1-1/2”	38	46	32	30			40	88	20	0.155
1-1/2”	38	48	31	30			40	75	22	0.124
1-3/4”	45	55	47	50	0.4	1.2	42	87	22	0.167
2"	50	59	48	50	0.4	1.2	57	102	30	0.312
	50	60	43	50			55	95	30	0.271
	50	62	35	50			55	94	30	0.265
