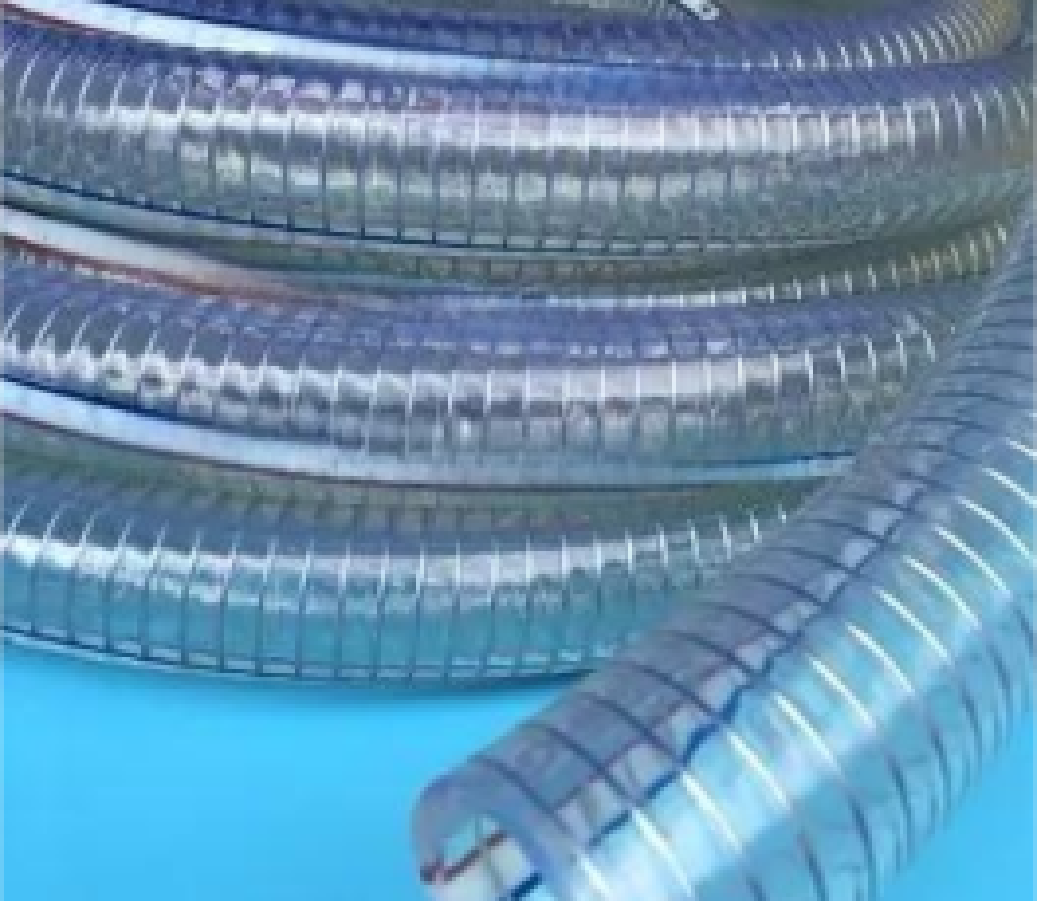

Pvc Spiral Steel Wire Reinforced Hose

Product Features

This product is embedded with a high-strength steel wire spiral frame, featuring a stable structure, lightweight and transparent design, facilitating real-time monitoring of medium flow. It has a small bending radius, strong negative pressure resistance, and is not easy to collapse. Colored marking lines can be customized to enhance identification and aesthetics.

Uses

Widely applicable for suction and delivery of water, oil, powder, and other media in industrial, agricultural, and engineering fields, meeting the requirements of various scenarios.

Operating Temperature：-10°C to 65°C

Online inquiry

Previous Next

Detailed content

Product Model

Imperial dimensions	Metric dimensions		Length	Work pressure W.P	Burst pressure B.P	Weight	Packaging size SIZE
Imperial dimensions	Inner diameter	Outer diameter	Length	At23℃		Weight	Packaging size SIZE
Inch	I.Dmm	0.Dmm	M/ROLL	Bar	Bar	Kg/ROLL	0.D.CM	H.CM
5/16"	8	14	100	0.4	1.2	18	40	22
3/8"	9	15				19	48	18
1/2"	12	18				21	54	18
5/8"	16	22				32	54	18
3/4"	19	25	50	0.4	1.2	15	56	16
1"	25	29	50	0.4	1.2	15	64	16
1"	25	31	50	0.4	1.2	25	64	20
1-1/4"	32	36	50	0.3	0.9	20	70	20
1-1/4"	32	40				35	70	22
1-1/2"	38	43				25	78	25
1-1/2"	38	47				45	79	26
1-3/4"	40	48				40	85	29
1-3/4"	45	52				45	87	30
2"	50	57				50	90	34
	50	58				60	93	35
	50	60				70	100	35
2-1/4"	58	68				75	100	42
	60	67				65	100	40
2-1/2"	64	72	30	0.25	0.7	45	110	42
3"	75	85				60	110	36
	75	90				90	115	33
	89	101				90	110	42
	102	112				90	146	34
	102	116				120	147	38
	110	122				105	152	39
	127	141	30	0.15	0.5	150	150	41
6"	152	166				180	160	65
8"	200	220				320	205	66
10"	250	274				510	230	54
12"	300	330
Other specifications of hoses can be customized according to customer requirements.
