Pvc High-Intensity Polyester Fiber And Steel Wire Reinforced Hose

Product Features

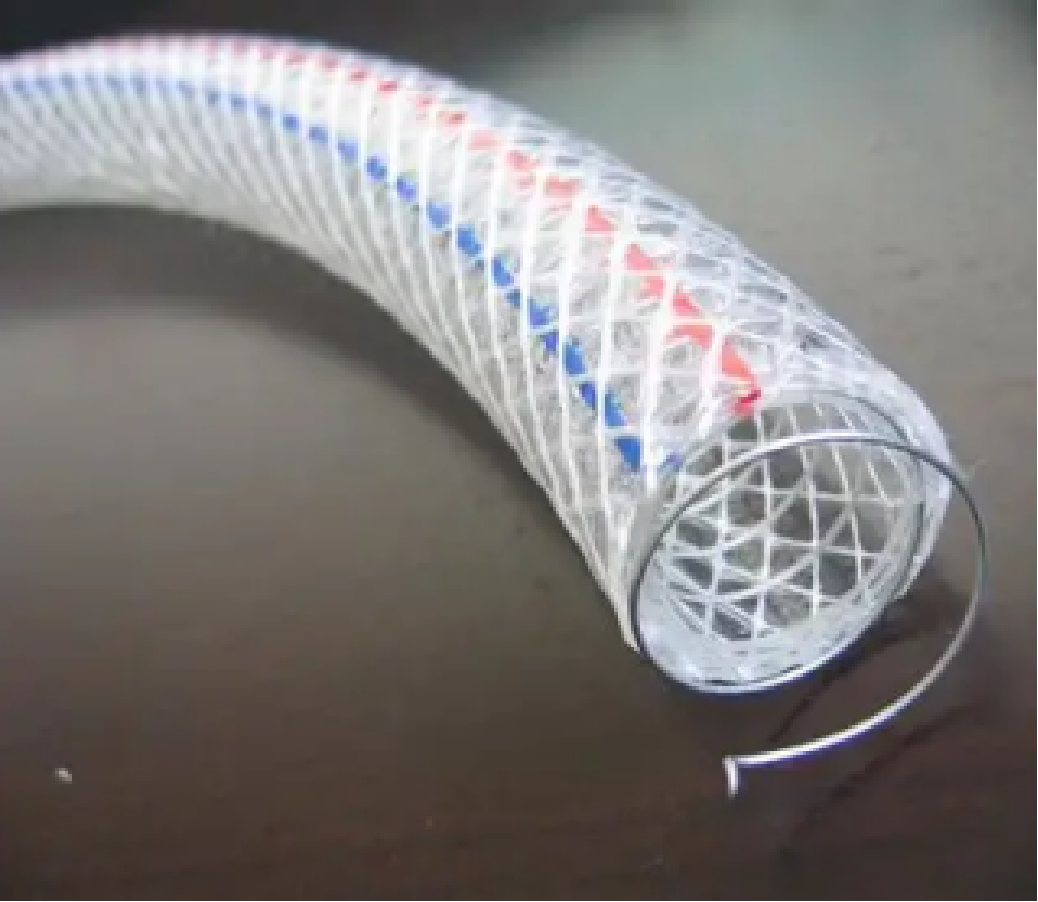

This product features a double-layer reinforced structure of steel wire and polyester fiber, offering excellent positive and negative pressure resistance. The hose body remains stable and not easily deformed during suction and discharge, significantly improving strength and pressure resistance. It is suitable for working conditions with high safety requirements.

Uses

Widely applicable for high-pressure delivery of liquids and gases, as well as suction of granular and powder materials, meeting diverse application needs in industrial and agricultural fields.

Operating Temperature：-10°C to 65°C

Online inquiry

Previous Next

Detailed content

Product Model

Imperial dimensions	Metric dimensions		length	Work pressure W.P	Blasting pressure B.P	Weight per roll		Packaging size SIZE
Imperial dimensions	Inner diameter	Outer diameter	length	At23℃		Weight per meter	Weight per roll	Outer diameter	Height
Inch	I.Dmm	O.Dmm	M/ROLL	Bar	Bar	Kg/M	Kg/M	O.D.CM	H.CM
3/4"	19	26	50	-1—10	30	0.40	20	56	17
1"	25	32	50	-1—10	30	0.50	25	68	19
1-1/4"	32	40	50	-1—9	27	0.70	35	73	24
1-1/2"	38	47	50	-1—8	24	0.90	45	76	28
2"	50	60	50	-1—8	24	1.30	65	92	35
2-1/2"	64	76	30	-1—7	21	2.15	65	105	30
3"	75	88	30	-1—7	21	2.50	75	108	36
3-1/2"	89	101	30	-1—6	18	3.00	90	116	40
4"	102	116	30	-1—6	18	4.00	120	150	34
Other specifications of hoses can be customized according to customer requirements.

Related products

Pvc High-Intensity Polyester Fiber Reinforced Hose
Pvc Three Adhesive One Line Reinforced Hose
Pvc High-Intensity Polyester Fiber Reinforced Garden Hose
Pvc Spiral Steel Wire Reinforced Hose
Pvc Anti-Static Silicone Steel Wire Spiral Reinforced Hose
Specialized Pvc & Rubber High-Intensity Polyester Fiber Reinforced Air Hose
Pvc High-Intensity Polyester Fiber New Style Flat Hose

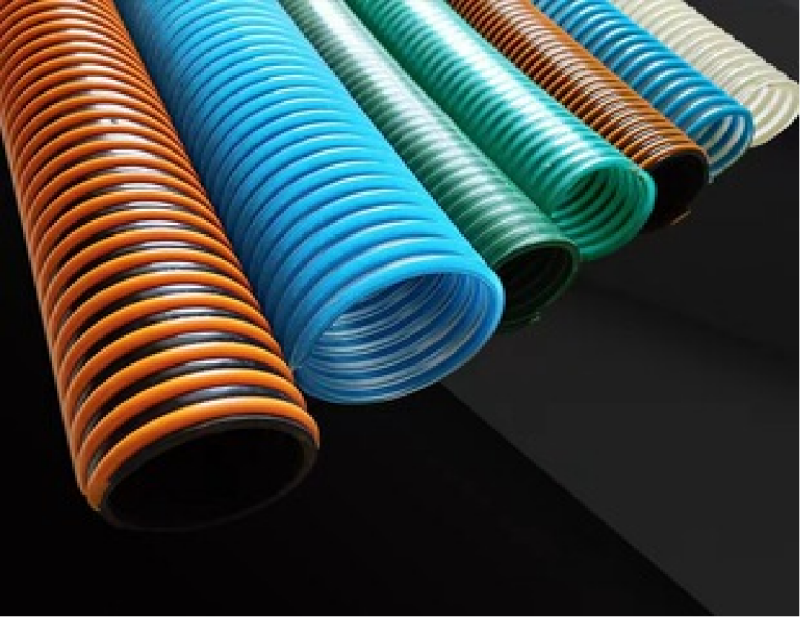

Pvc Helix Suction Hose
